Introduction

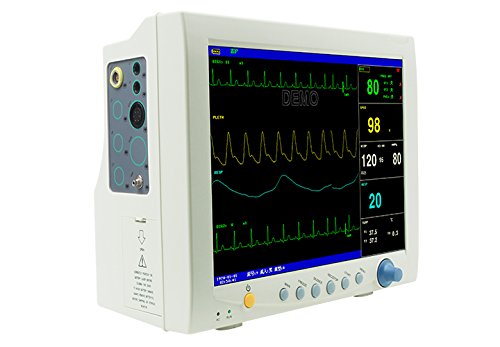

The monitor has abundant functions that can be used for clinical monitoring with adult, pediatric and neonate. Users may select different parameter configuration according to different requirements. The monitor, power supplied by 100-240V～,50/60Hz, adopts 12.1'' color TFT LCD displaying real-time date and waveform. It can synchronously display eight-channel waveform and full monitoring parameters equipped with an optional 48mm thermal recorder. The monitor can be connected to the central monitoring system via wire or wireless network to form a network monitoring system.

This device can monitor such parameters as ECG, RESP, NIBP, SpO2, and dual-channel TEMP, etc. It integrates parameter measurement module, display and recorder in one device to form a compact and portable equipment. Its replaceable internal battery brings lot of convenient for patient moving.

Main Features

■12.1'' TFT color LCD, 15-language interface(Simplified Chinese, Traditional Chinese, English, French, German, Turkish, Spanish, Portuguese, Italian, Dutch, Romanian, Russian, Kazakhstan, Polish, Czech).

■Fanless design, quiet, energy-saving and clean, which reduces the possibility of cross-infection.

■All-round monitor for adult, pediatric and neonate.

■With standard interface, OxyCRG, trend chard, big character interface and view bed, convenient to observe.

■Waveform, parameter color and location can be set optionally. ■Operation mode: keys and buttons.

■Display up to 8-channel waveform on one screen.

■Display 7-lead ECG waveform on one screen, and with ECG step function.

■Adopt digital SpO2 technology, anti-motion and anti-ambient light interference, and measurement can be performed under the circumstance of weak filling.

■HRV analysis function.

■NIBP measurement mode: Manual/AUTO/Continuous, storage for 4800-group NIBP data.

■Review for 71 alarm events of all parameters and 60 arrhythmia alarm events.

■Drug concentration calculation and titration table functions.

■Print trend table data with one-key.

■Connect to Central Monitoring System by 3G, WiFi or wired mode.

■AC/DC, built-in rechargeable lithium battery achieve uninterrupted monitoring.

■Anti-high frequency surgical unit, defibrillation-proof(special leads are necessary).
